Battery Charging

Warning

Only use power supplies that have a CE certification and provide a minimum of 500mA/5V.

Upon delivery, the battery of the device may not be fully charged. Please charge the battery before first use.

  1. Plug in the provided USB cable into the device USB-C port.

  2. Plug the USB cable into a USB power supply (minimum 500mA/5V) or into a computers USB port.

  3. Plug the power supply into a power outlet.

  4. Charging begins when the charging status is displayed on the device screen.

  5. Charging is complete when the charging status displays “Fully charged”. The charging time can take several hours, depending on the state of charge, the power supply used and the .

Tip

To perform a quick charge, use the supplied USB-C cable together with a fast-charging USB-C power supply that delivers at least 3A.

First steps

Power-On

To power the device on for the first time, you need to connect it to a power source through the USB port.

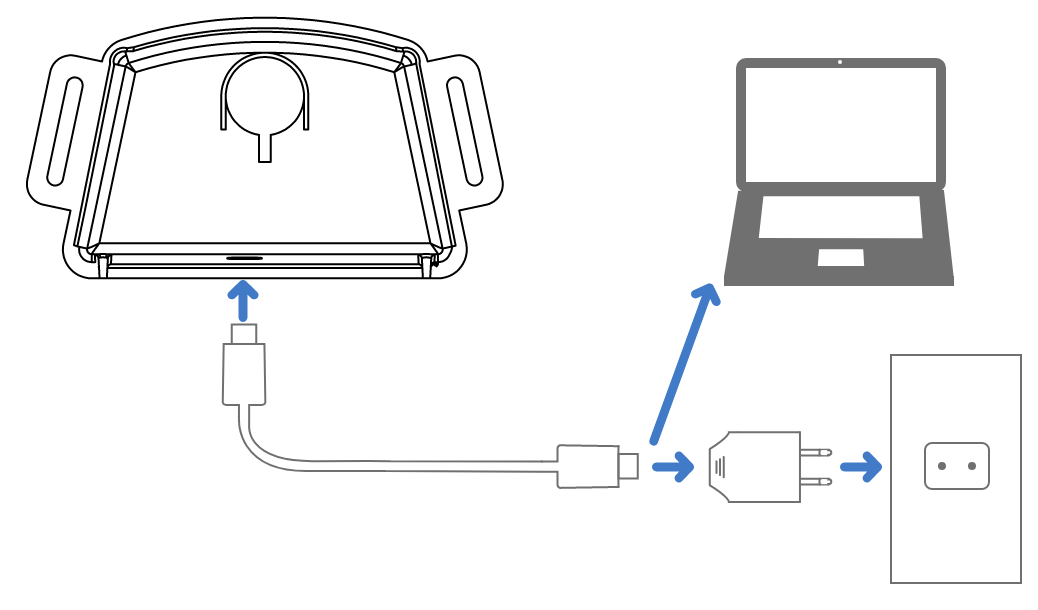

_images/S2_power_on.png
  1. Connect the S2 to a power source (computer or usb plug)

  2. The device starts up and can be accessed through the App.

Open App

Open the App on your Smartphone (if you don’t have the App, see Download BATLOGGER Control App)

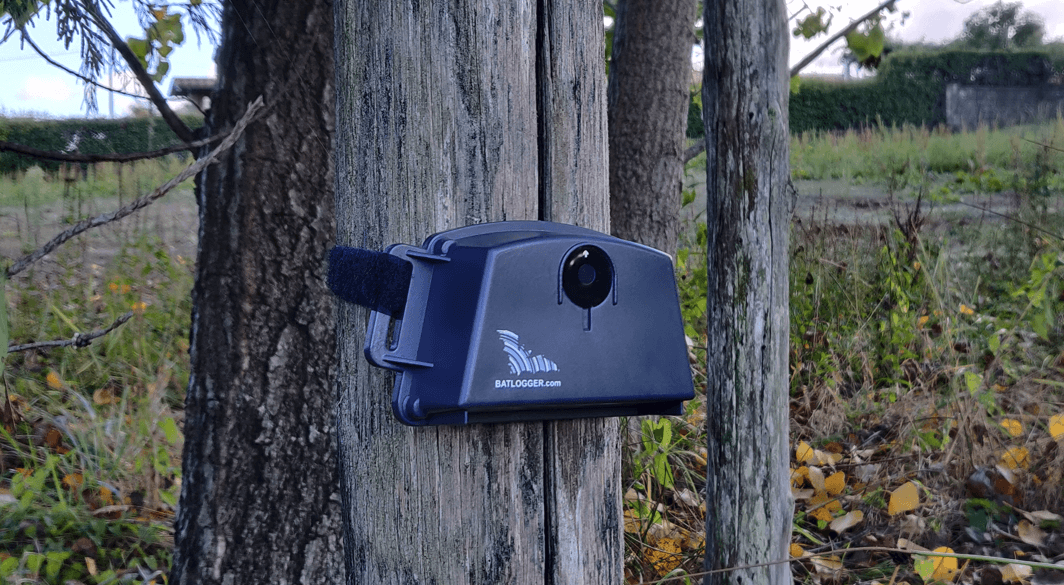

Placement

Make sure that the BATLOGGER S2 is placed “standing” so the microphone is facing forwards. If the microphone is placed upwards, rain water will stay on the microphone and break it.

_images/placement_s2.png
